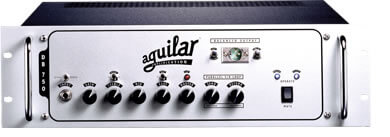

DB750

DB750 は、オールチューブのプリアンプ・セクションとディスクリートのMOSFETを使用したパワーアンプ部で構成した革新的なハイブリッド・ベース・アンプです。迫力のパワーと素晴らしいサウンドの組み合わせで、DB750はハイブリッド機の代名詞となりました。4 Ωで750W、2Ωで975Wのパワーは、文字通り骨の髄まで揺さぶってくれます。12AX7が3本、12AU7が1本の計4本のチューブを使用したプリ部は、太くクリーミーなサウンドを創り出します。このチューブがバッファ、ドライブとなり、aguilarサウンドを生み出します。

Specs

Accepts 2, 4, and 8 ohm loads

Tuner Out with Mute

Self-Diagnostic Protection Circuit and Thermal Overload Protection Circuit (both with LED Indicators)

Short Circuit Protection

Power Output: 750 watts @ 4 ohms, 975 watts @ 2 ohms.

Preamp Section: Three 12AX7s and one 12AU7

Power Section: 12 complimentary lateral MOSFETs

Transformers: Custom Aguilar toroidal power transformer.

EQ Section: Tube-driven shelving type treble (+/ - 12dB @4kHz), mid (+/ - 12dB @ 400Hz), and bass (+/ - 12dB @ 40Hz) controls.

Deep Switch: Adds 3db of broad-band boost at 30 Hz.

Bright Switch: A passive RC pre-emphasis circuit at 5-7 kHz.

Effects Loop: Send pot is push/pull for line or instrument level; return pot is push/pull for parallel or series operation.

Inputs: One 1/4" input jack with an active/passive switch. One 1/4" power amp input.

Outputs: Two Neutrik Speakon speaker outputs, one Jenson XLR balanced output (-32dB pre- and post-EQ) with a ground lift switch, and one 1/4" jack preamp output.

Cooling: High quality whisper fan

Power Requirement: 100, 120, 230 VAC 50 - 60 Hz

Dimensions: 48.3(W)×35.6(D)×13.3(H)cm

Rack Size: 3U Spaces

Weight: 19.5kg

Footswitch: Optional mute activation footswitch available
